DVR HD-SDI Full HD 16 canale Dahua DVR1604HD-L

DVR HD-SDI Full HD 16 canale
Dahua DVR1604HD-L


DVR FULL HD 16 canale Dahua DVR1604HD-L
- compresie H.264,
- 16 intrari video,
- 4 intrari audio,
- 1080p(1920×1080) la vizualizare,
- inregistrare 200fps/1080p(1920×1080),
- inregistrare la detectie miscare, dupa orar, continuu sau intrari alarma,
- 16 intrari alarma,
- 6 iesiri alarma (releu),
- LAN, webserver, CMS (soft dispecerat) gratuit pentru 300 canale,
- 4 porturi USB,
- RS232,  RS485 pentru comanda speed domuri,
- suporta 4 hard disk-uri SATA II maxim 4TB fiecare (sau 1 unitate optica si 3 hard disk-uri), 1 eSATA,
- 2 iesiri videocomplex, 1 iesire VGA, 1 iesire HDMI,
- operare pentaplex,
- telecomanda,
- controlul meniurilor cu mouse USB,
- controlul speed domurilor cu mouse direct pe imagine (3D intelligent location - click on image),
- monitorizare si management prin internet: Browser web, CMS(DSS/PSS) & DMSS
Unitatea optica si hard disk-urile nu sunt incluse.
Calitate excelenta a imaginii !!


Model DVR FULL HD 16 canale Dahua DH-DVR1604HD-L
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video
Input 16 channel, BNC
Standard 1080P(25/30) / 720P(25/30,50/60)
Audio
Input 4 channel, BNC
Output 1 channel, BNC
Two-way Talk 1 channel Input, 1 channel Output, BNC
Display
Interface 1 HDMI, 1 VGA, 1 TV, BNC
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, time, video loss, camera lock, motion detection, recording
Recording
Video/Audio Compression H.264 / G.711
Image Resolution 1080P(1920×1080), 720P(1280×720) D1(704×576 / 704×480), CIF(352×288 / 352×240)
Record
Rate
Main stream Max 200/240fps@1080p
Extra stream D1/CIF(25/30fps)
Bit Rate 256~8096Kb/s
Recording Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Recording Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Motion Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/2/4
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size)
Backup Mode USB Device / eSATA Device / Internal SATA burner/ Network
Network
Ethernet RJ-45 port (10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 4 SATA ports (4HDDs or 3HDDs+1CD/DVD-RW), up to 16TB
External HDD 1 eSATA port (Max 4 SATA HDDs), up to 16TB
Auxiliary Interface
USB Interface 4 ports (2 Rear), USB2.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
General
Power Supply AC 100~240 V, 50/60 Hz
Power Consumption 40W(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) 1.5U, 440mm×460mm×68mm
Weight 6.0KG(without HDD)
Pret: 5658 RON

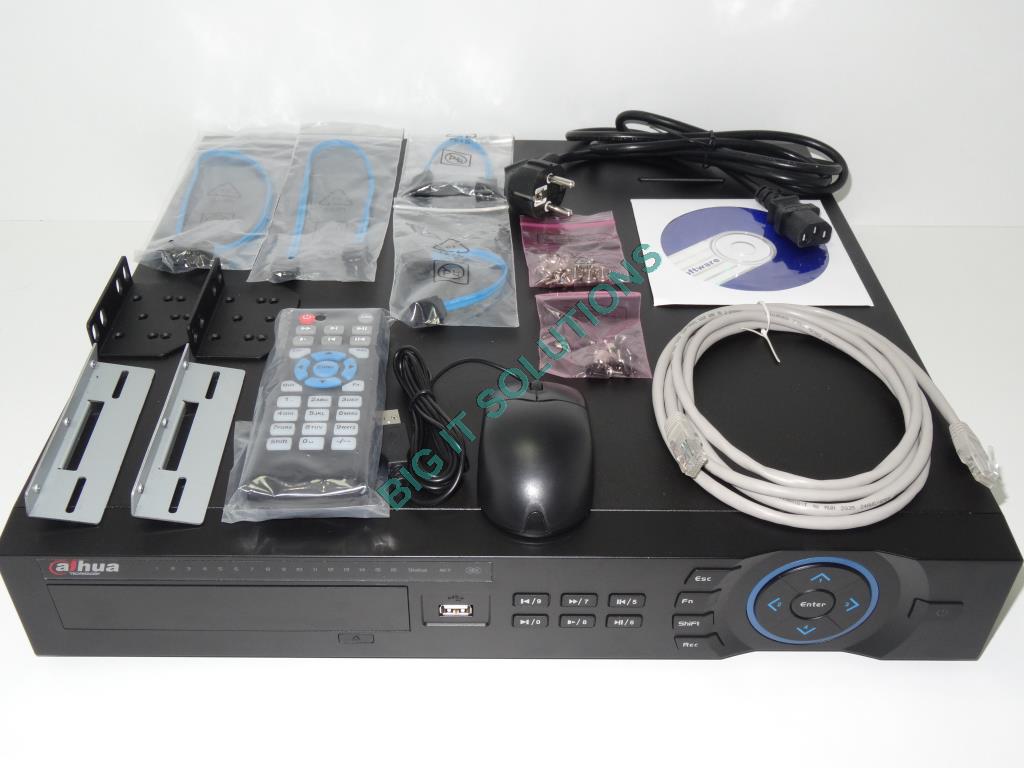

Galerie foto DVR HD-SDI Full HD 16 canale Dahua DVR1604HD-L
