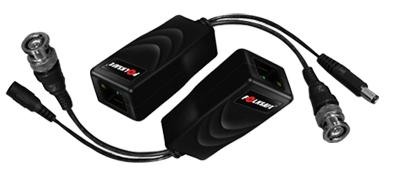

Video balun pasiv cu alimentare Folksafe FS-4301VP

Video balun cu alimentare Folksafe FS-4301VP (mufa RJ45)Pretul este pentru o pereche. Pentru conectarea unei camere este nevoie de 2 bucati (una la camera, una la DVR/placa de captura)Product Name Single Channel Passive Video and Power Transceiver ( FS-4301VP )Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipmentVideo Format PAL, NTSC, SECAMOperating Frequency DC to 5MHzMax Distance UTP Category 5e (24AWG) Color: 1300ft(400m) B&W: 1950ft(600m)Common-mode/Differential-mode rejection 15 KHz to 5 MHz 60 dB typImpedance Coax, Male BNC 75Ω unbalanced UTP,RJ45 100Ω balancedAttenuation 1.5 dB typ MaxNetwork Wiring One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)Category Type 2 or betterImpedance 100 ± 20 ohmsDC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)Differential Capacitance 19 pF/ft max (62 pF/m max)Power transmission 12V/24V,DC/AC, up to 750ft(250m) via UTP cat5e/6Connector Video input/output Male BNC connectorVideo input/output RJ45 JackSurge Protection renewable solid state surge protectionVideo Input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)Video Output 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)Dimensions(L*W*H) 60.4*29*20.4mm (BNC connector & cable excluded)
Pret: 47 RON
Galerie foto Video balun pasiv cu alimentare Folksafe FS-4301VP
Video balun pasiv cu alimentare Folksafe FS-4301VP
