CABLU UTP CUPRU



SPECIFICATII TEHNICE

Conductor

Marca

3 CORE

Material

CUPRU  SOLID

Dia. Of Conductor

0.45MM +/- 0.01MM

AWG

24

Impedance

≤10 Ω/100m

Operating Temp. Range

-45° / +65° C

Elongation

≥ 18%



Insulation

Material

HDPE

Thickness

0.2mm

Diameter

Φ0.86±0.03mm

Elongation

≥300%



                   Jacket

Material

PVC

Thickness

0.58±0.1mm

Color

Gri

Diameter

Φ5.1±0.2mm

Cable Marking

UTP cat. 5e 4Pairs ISO/IEC11801 TIA/EIA568B 001m…305m







Electrical Characteristics

20°C

Conductor D.C. Resistance

≤12.5Ω/100m

Imbalance of pairs D.C. Resistance



≤ 2.5%

Capacitance

≤5.6nF/100m

Insulation Resistance

≥5000MΩ/Km

Imbalance of Capacitance

≤300 pF/100m

Dialectric Strength between Pairs



≤ 1.0 kv/min



Pret: 240 RON

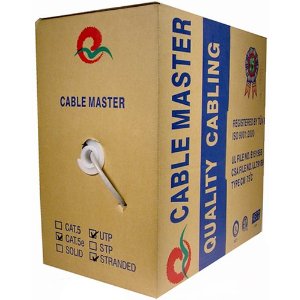

Galerie foto CABLU UTP CUPRU
CABLU UTP CUPRU
