SOLAR BATTERY CHARGER

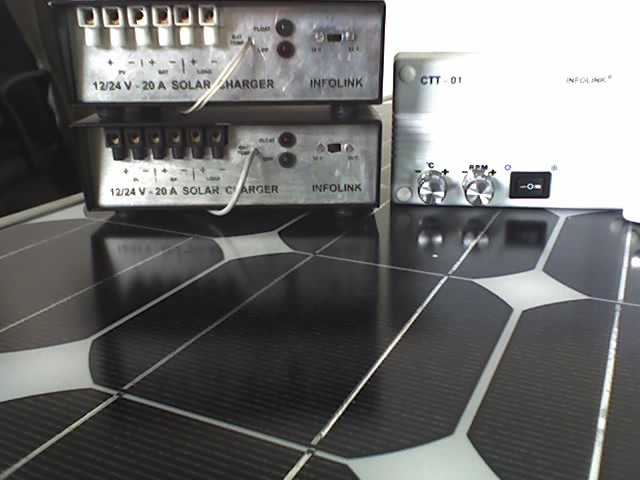

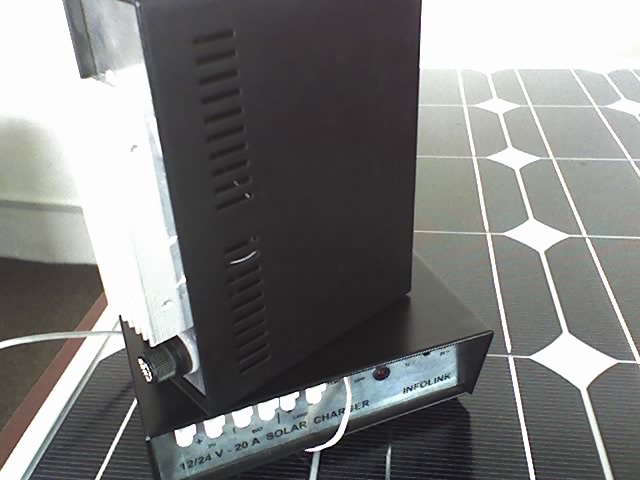

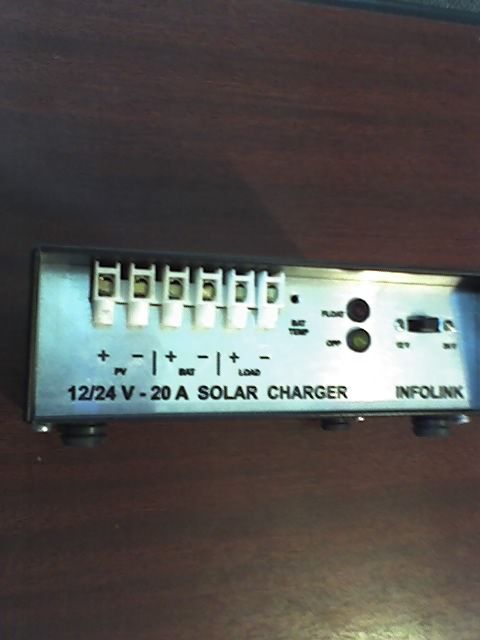

Solar Charge Controller 12/24V – ILK5/10/20/30/40A

12/24V switch

3 LED charging / faulty status

Three steps charging (boost, absorbtion, PWM float)

Dynamic protection against battery deep discharging & LED visualized

Dynamic protection against battery Overcharging & LED visualized

Gas formation control & LED visualized

LVD (Low Voltage Disconnect) & automatic reconnect

Temperature compensantion (external sensor included)

External fuse

Low power loss (low Rds high power MOSFET switch used)

Nominal voltage:                                            12 / 24V

Nominal current:                                             5 / 10 / 20 / 30 / 40 A

Max. Load:                                                     5 / 10 / 20 / 30 / 40 A

Max. Power used:                                           3 / 4 / 4 / 5 / 5 mA

Temp. compensation:                                      -4 mV / °C / cell

  Sealed lead battery:                                      13.7 V / 27.4 V

  Lead Acid battery:                                        14.1 V / 28.2 V

  Gassing activation voltage:                           12.4 V / 24.8 V

  Float voltage:                                    .           14.5 V / 29 V

Deep discharge disconnection voltage:          11.1 V / 22.2 V

Boost start voltage:                                         12.6 V / 25.2 V

Temperature range:                                         -25 °C to +50 °C

External fuse:                                                  5 / 10 / 20 / 30 / 40 A

Dimensions ( L x l x H ):                                150 x 110 x 45 mm

Weight:                                                           max. 300 g

Warranty:                                                        2 years according to installing & operating instructions set
