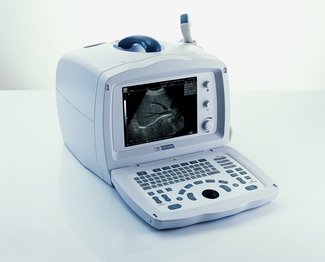

Mindray DP 2200 cu sonda Convexa 3,5Mhz

Imaging mode:B, B+B, B+M, M
Gray scale:256
Transducer frequency:2.5 -10MHz
Transducer connector:1(standard), 2 (opt(onal)
Dynamic imaging technology:
-Digital Beam-forming (DBF)
-Dynamic Receiving Focusing (DRF)
Up to 16 zone transmitting focusing
-Dynamic Frequency Scan (DFS)
-Reai-time Dynamic Aperture (RDA)
-Dynamic Receiving Apodization (DRA)
-Scanning angle:from 67 to 120 degree (depending on transducers)
-Scanning depth (mm): from 21.6 to 248(depending on transducers)
Imaging Processing
-dynamic range
-edge enhancement
-frame correlation
-4-segmentTGC adjustment
IP (Image Process)
-acoustic power adjustment
-high resolution/high frame rate select
-gray map
-left right reverse
-up-down reverse
Cineloop:128-frame tine loop memory
Storage media:internal flash and USB
Zoom:panoramic in real-time and frozen condition
Built-in image archive: permanent storage up to 90 images
Measurement & Calculation
B-mode:distance, circumference, area, volume, angle, ratio, histogram, profile, S%
M-mode:distance, time, velocity, heart rate (2 cycles)
Software packages:abdomen, gynecof ogy, obstetrics, orthopedics
Peripheral port:video output 1
USB port 1
DICOM3.0 1 (optional)
Power supply: 100-240VAC+/-10%, 50Hz/6OHz
Dimensions: 360mm (W) X 320mm (L) X 270mm (H)
Net weight:9.5 Kg
Standard Configurations
DP-2200 main unit
10"non-interlaced monitor
One transducer connector
128-frame ONE Poop
90-frame image storage
One USB port
Measurement & calculation software package
Electronic convex array transducer: 35C50EB (2.5/3.5/5.0MHz)
Electroniclinear array transducer: 75L38EB (5.0/7.5/10MHz)
Electronic linear array transducer: 75L60EA (5.0/7.5/10MHz)
Electronic endocavity transducer: 65EC1 OEB (5.0/6.5/8.0MHz)
Electronic micro-convex array transducer: 35C20EA (2.5/3.5/6.0MHz) Electronic micro-convex array transducer: 65C1 5EA (5.0/6.5/8.0MHz) Two transducer connectors
Needle-guided brackets
Mobile trolley
Hand carried bag
Descarca pliant de prezentare:DP-220
Pret: 4.340,00 RON
