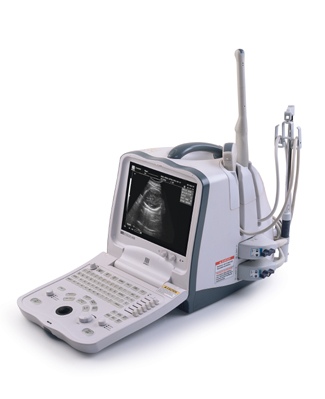

Mindray DP6600 cu sonda Convexa 3,5Mhz

Trimite mesaj

Caracteristici:
Imaging mode: B, B+B, B+M, M
Gray scale: 256
Display: 10 non-interlaced
Transducer frequency: 2.0 ~ 10MHz
Transducer connector: 2 (standard)
Beam-forming: Digital Beam-forming (DBF)
Dynamic Receiving Focusing (DRF) up to 16 zone transmitting focusing
Dynamic Frequency Scan (DFS)
Real-time Dynamic Aperture (RDA)
Dynamic Receiving Apodization (DRA)
Tissue Speciality Imaging (TSI)
Scanning angle:from 40 to 128 degree (depending on transducers)
Scanning depth (mm):from 25.9 to 246 (depending on transducers)
Imaging Processing:
Pre-processing
-dynamic range
-edge enhancement
-frame correlation
-smooth line correlation
-AGC
- 6-segment TGC adjustment
-IP (Image Process)
-acoustic power adjustment
-scanning angle selection
-high resolution/high frame rate select
Post-processing:
-gray map
-correction
-rejection
-left-right reverse
-up-down reverse
Functions:
Cine loop:256-frame cine loop memory
Storage media:flash card and USB card
Zoom:panoramic zoom in real-time and frozen c ondition
Built-in image archive: permanent storage up to 16 frame images
Measurement & Calculation
-B-mode:distance, circumference, area, volume, angle,residual urine volume, histogram, profile, S%
-M-mode:distance, time, velocity, heart rate (2 cycles)
Software packages: abdomen, gynecology, obstetrics, cardiology, small parts, IVF,peripheral vessels, orthopedics, urology, Interventional
Transducer Types
-Electronic convex array transducer:
CA3.5MHz/R50 (2.0/3.5/6.0MHz)
-Electronic micro-convex array transducer:
CA3.5MHz/R20 (2.0/3.5/6.0MHz)
-Electronic endocavity transducer:
EV6.5MHz/R10 (5.0/6.5/8.0MHz)
-Electronic linear array transducer:
LA7.5MHz/L38 (5.0/7.5/10MHz)
Others
Peripheral port: video output 2
USB port 2
DICOM3.0 1 (optional)
Power supply: 100~240VAC 10% 50Hz/60Hz
Dimensions: 286mm(W) X 385mm(L) X 306mm(H)
Net weight: 11Kg
Descarca pliant de prezentare:DP-6600

Pret: 4.836,00 RON
