Masina slefuit tevi PIPE-SNIPER (EISENBLATTER-GERMANIA)

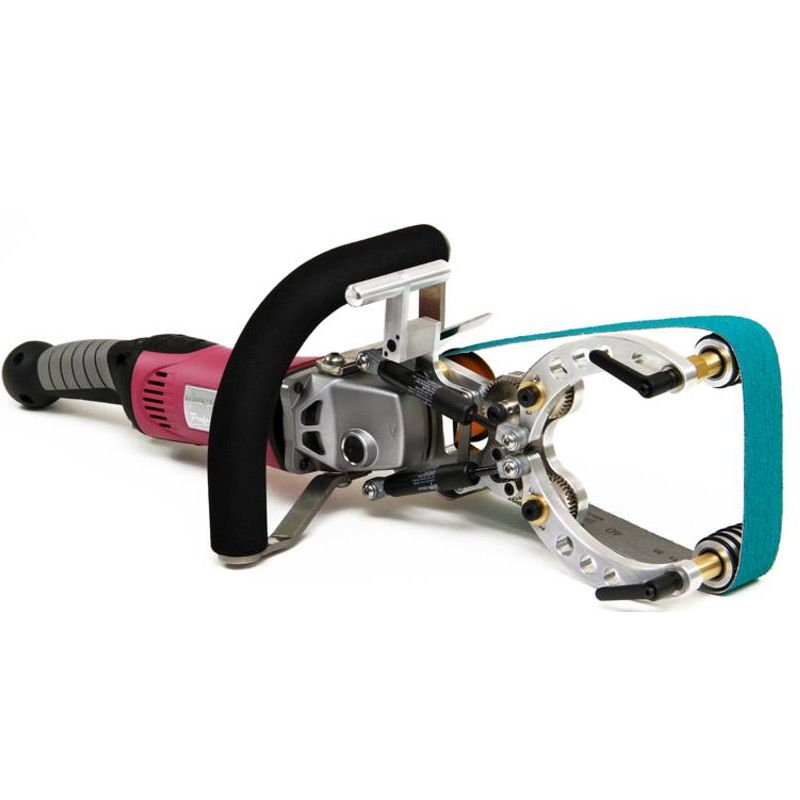

With the new pipebelt grinder PIPE-SNIPER® the future of pipe treatment has just begun!

The ability of frontal insertion is particularly  worth emphasizing:

whereas conventional pipe machining tools mostly only have one single moveable arm, the technology of our new pipe machining system is  based on a principle which up to now is unique: both gripper arms are flexible and can be controlled using a lever.

360° pipe machining from a sole workposition:

Thanks to a 2/3 envelopment, complete grinding around the whole pipe is possible,  without having to change the working position. The lever is fitted in such a way that it can be conveniently operated by hand.  The lever device and gas pressure shock absorber also considerably reduce the necessary force which has to be applied. Thanks to the design, with the PIPE-SNIPER® it is also possible to even work in narrow spaces. The bow handle is fitted to the machine in such a way that balanced grinding is possible in every working position, even when machining corner areas. There are numerous grinding belts available for the  PIPE-SNIPER®, and these range from rough grinding to mirror finish  enabling all types of pipe machining.

A toothed-wheel mechanism ensures the exact synchronicity of the movement:

The grinding belt, which is stretched over the guide rollers between the cantilever arms,  can be placed so that it fits exactly over the pipe.
Gas pressure shock absorbers ensure constant pressure and that the 40 millimeter wide belt continuously remains tight.

A special ventilation system on the drive motor  has twin benefits:

It directs the intake air to the head of the grinding machine,  which cools it.  At the same time the air flow directs the grinding dust away from the user.

The most powerful grinding machine for pipe threatment:

A simple and at the same time ingenious principle:  if the ROHR-SNIPER® is lifted or lowered,  the complete machining of the pipe is possible without changing the working position. This means that with a pipe diameter of 25 to 42 millimeters a 2/3 envelopment is possible without any problems. Even in the case of a 70 millimeter diameter the tool can grip around 50 percent of the pipe. Thanks to the new drive motor with 1,750 watts,  the PIPE-SNIPER® is the most powerful grinding machine for pipe machining currently on the market The motor enables high torque and a constant high performance even during constant use. Furthermore the speeds from 1,000 up to 3.800 rpm can be continuously regulated using the adjusting wheel at the tip of  your thumb and the set speeds are kept constant through an intelligent speedometer generator even under load.

Robust and powerful pipebelt grinder with 1.750 watts output Unique performance in the speed controlled grinder-segment Infinite adustable rpm Tachogenerator for constant speed under load Safety-Electronics prevent the machine from starting after a power failure Smooth starting takes care of machine and user Pipe diameters from 25 to 70 mm threatable Special protection cover that keeps dust away from the user and cools the driving roller New rubberised Handgrip for a perfect handling Dust protection field sealing guarantees a long service life "Quick-Lock system" for a easy cord change in length or for transportation
