Subwoofer auto HiFi top class

Trimite mesaj

Subwoofer auto HiFi top class

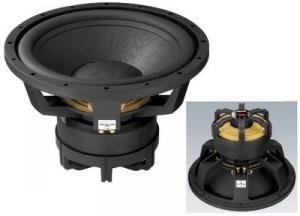

RAPTOR-15

State-of-the-art subwoofers pentru aplicatii HiFi auto si nu numai !

Caracteristici tehnice generale:

Impedance (Z) 4Ω

Resonant frequency (fs)39Hz

Max. frequency range f3-300Hz

Music power 1,500WMAX

Power rating (P) 1,000W

RMSSPL (1W/1m) 89dB

Suspension compl. (Cms)0.06mm/N

Moving mass (Mms)230gMech. Q factor (Qms)7.24Electr. Q factor (Qes)0.77

Total Q factor (Qts)0.69

Equivalent volume (Vas)56 lDC resistance (Re)3.4Ω

Force factor (BxL)16.4Tm

Voice coil induct. (Le)1.1mH

Voice coil diameter77mm

Voice coil formerGSV

Linear excursion (XMAX)ą13.5mmEff. cone area (Sd)810cm2

Magnet weight 172oz.

Weight 13.6kg
