DVR 16 canale H264 cu HDMI EC-502

DVR 16 canale H264 cu HDMI EC-502 DVR 16 canale H264 EC-50216 intrari video, 4 intrari audio, 4 intrari alarma,inregistrare: 2 CH x D1 + 14CH x CIF,1 iesire TV + 1 iesire VGA + 1 iesire HDMI (1080p),1 x RJ-45, 1 x RS485 : Pelco D, Pelco P,acces mobil: Window Mobile ,Symbian, Android, iPhone si Blackberry,1 HDD S-ATA maxim 3TB (nu este inclus),inregistrare: manuala,orara,la alarma,la detectie de miscarecautare video dupa: ora, data, canal, tip eveniment,alimenatre 12V - 4Ah inclusa Model Name EC-502 System Main Processor Hisilicon Hi3520A System Resource Sixfold operation: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring Control Mode Front panel, USB mouse, IR remote control, Keyboard, Network Video Input 16×BNC,(1.0Vp-p,75Ω) Standard 2D1+14CIF real time,NTSC: 480FPS ;PAL: 400FPS Output 1×BNC,(1.0Vp-p,75Ω),1×VGA,1×HDMI Audio Input 4×RCA Output 1×RCA Display Display Split 1/4/8/9/16 Resolution BNCx1, VGA+HDMI: 1024*768 1280*1024 1280*720@60P 1920*1080@60P Tour Display Support Recording OSD Camera title, Time, Video loss, Motion detection, Recording Video/Audio H.264/ADPCM Image Resolution D1(720*576/720*480), HD1(720*288/720*240), CIF(352*288/352*240) Performance 2D1+14CIF Encoding stream Main stream CIF:550FPS@PAL 590FPS@NTSC Extra CIF:20FPS Recording Mode Manual, schedule,Motion detection,Alarm Recording Priority Manual>Alarm>Motion detection Video detection & Alarm Trigger events Recording, PTZ movement, Alarm, E-mail Motion detection Zones:396(22*18),Sensitivity:1-5(Level 5 is the highest) Video loss Support Alarm 4 IN / 1 OUT Playback & Backup Playback channel 16CH (16CH at the same time) Playback speed CIF:350FPS@PAL 420FPS@NTSC Search mode Time/date, Alarm, Motion detection Playback function Play, Pause, Stop, Fast forward, Slow forward, Full screen etc. Recording files can be viewed by dragging the progress bar back and forth Backup mode U-disk /USB-HDD/USB-CD /DVD-RW/Network Network Physical interface RJ-45port(10/100M) Network function TCP/IP,UDP,DHCP,DNS,IP filter, PPPOE, E-mail, Alarm server, UPNP, DDNS,DNS Binding Remote operation Monitor, PTZ cont, , , rol, Playback, System setting, files download, Log information Mobile Phone Support Window Mobile, Symbian, Android, iPhone, Blackberry etc. Hard Disk Hard disk 1 SATA port, the capacity of single hard disk MAX 3T Space occupation Audio: 14.4MB/H, Video: 56-900MB/H HDD management Hard disk hibernation technology, HDD faulty alarm, file restoration Auxiliary Interface USB Two USB2.0 interface, for connecting mouse, U-disk, USB hard disk RS485 PTZ control Environment Power supply 12V/4A Working environment -10?~+55?/10~90%RH/86~106Kpa Dimension 335*250*50mm(Product size) Weight 3.0kg(no HDD);Package Weight:3.5Kg
Pret: 550 RON

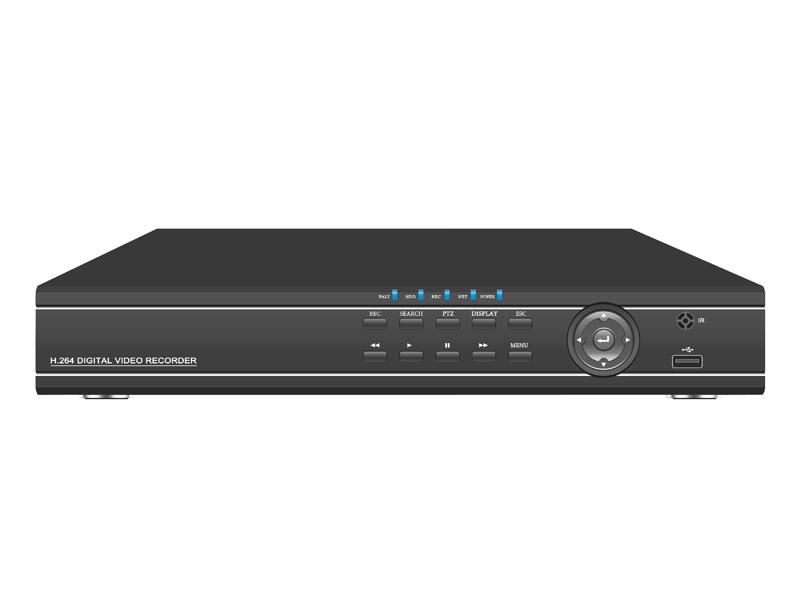

Galerie foto DVR 16 canale H264 cu HDMI EC-502
DVR 16 canale H264 cu HDMI EC-502
