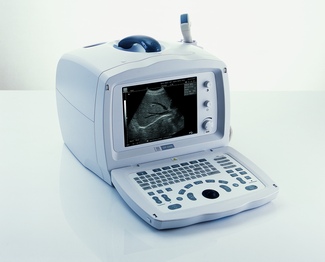

Ecografe - Mindray DP 2200 cu sonda Convexa 3,5Mhz

Ecografe - Mindray DP 2200 cu sonda Convexa 3,5Mhz

Caracteristici:

Imaging mode:B, B+B, B+M, M

Gray scale:256

Display:10"non-interfaced

Transducer frequency:2.5 -10MHz

Transducer connector:1(standard), 2 (opt(onal)

Dynamic imaging technology:

-Digital Beam-forming (DBF)

-Dynamic Receiving Focusing (DRF)

Up to 16 zone transmitting focusing

-Dynamic Frequency Scan (DFS)

-Reai-time Dynamic Aperture (RDA)

-Dynamic Receiving Apodization (DRA)

-Scanning angle:from 67 to 120 degree (depending on transducers)

-Scanning depth (mm): from 21.6 to 248(depending on transducers)

Imaging Processing

Pre-processing:

-dynamic range

-edge enhancement

-frame correlation

-4-segmentTGC adjustment

IP (Image Process)

-acoustic power adjustment

-high resolution/high frame rate select

Post-processing:

-gray map

-y-correction

-rejection

-left right reverse

-up-down reverse

Functions:

Cineloop:128-frame tine loop memory

Storage media:internal flash and USB

Zoom:panoramic in real-time and frozen condition

Built-in image archive: permanent storage up to 90 images

Measurement & Calculation

B-mode:distance, circumference, area, volume, angle, ratio, histogram, profile, S%

M-mode:distance, time, velocity, heart rate (2 cycles)

Software packages:abdomen, gynecof ogy, obstetrics, orthopedics

Others

Peripheral port:video output 1

USB port 1

DICOM3.0 1 (optional)

Power supply: 100-240VAC±10%, 50Hz/6OHz

Dimensions: 360mm (W) X 320mm (L) X 270mm (H)

Net weight:9.5 Kg

Standard Configurations

DP-2200 main unit

10"non-interlaced monitor

One transducer connector

128-frame ONE Poop

90-frame image storage

One USB port

Measurement & calculation software package

Electronic convex array transducer: 35C50EB (2.5/3.5/5.0MHz)

Options

Electroniclinear array transducer: 75L38EB (5.0/7.5/10MHz)

Electronic linear array transducer: 75L60EA (5.0/7.5/10MHz)

Electronic endocavity transducer: 65EC1 OEB (5.0/6.5/8.0MHz)

Electronic micro-convex array transducer: 35C20EA (2.5/3.5/6.0MHz) Electronic micro-convex array transducer: 65C1 5EA (5.0/6.5/8.0MHz) Two transducer connectors

Needle-guided brackets

DICOM3.0

Footswitch

Mobile trolley

Hand carried bag

18.445,00 RON cu TVA

     14.875,00 RON fara TVA
