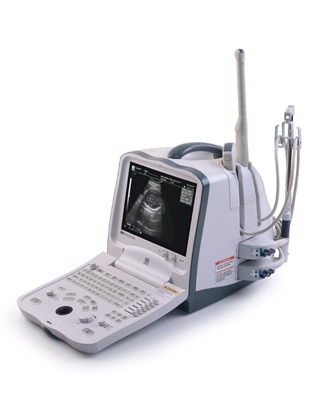

Ecografe - Mindray DP6600 cu sonda Convexa 3,5Mhz

Ecografe - Mindray DP6600 cu sonda Convexa 3,5Mhz

Caracteristici:

Imaging mode: B, B+B, B+M, M

Gray scale: 256

Display: 10 non-interlaced

Transducer frequency: 2.0 ~ 10MHz

Transducer connector: 2 (standard)

Beam-forming: Digital Beam-forming (DBF)

Dynamic Receiving Focusing (DRF) up to 16 zone transmitting focusing

Dynamic Frequency Scan (DFS)

Real-time Dynamic Aperture (RDA)

Dynamic Receiving Apodization (DRA)

Tissue Speciality Imaging (TSI)

Scanning angle:from 40 to 128 degree (depending on transducers)

Scanning depth (mm):from 25.9 to 246 (depending on transducers)

Imaging Processing:

Pre-processing

-dynamic range

-edge enhancement

-frame correlation

-smooth line correlation

-AGC

- 6-segment TGC adjustment

-IP (Image Process)

-acoustic power adjustment

-scanning angle selection

-high resolution/high frame rate select

Post-processing:

-gray map

-correction

-rejection

-left-right reverse

-up-down reverse

Functions:

Cine loop:256-frame cine loop memory

Storage media:flash card and USB card

Zoom:panoramic zoom in real-time and frozen c ondition

Built-in image archive: permanent storage up to 16 frame images

Measurement & Calculation

-B-mode:distance, circumference, area, volume, angle,residual urine volume, histogram, profile, S%

-M-mode:distance, time, velocity, heart rate (2 cycles)

Software packages: abdomen, gynecology, obstetrics, cardiology, small parts, IVF,peripheral vessels, orthopedics, urology, Interventional

Transducer Types

-Electronic convex array transducer:

CA3.5MHz/R50 (2.0/3.5/6.0MHz)

-Electronic micro-convex array transducer:

CA3.5MHz/R20 (2.0/3.5/6.0MHz)

-Electronic endocavity transducer:

EV6.5MHz/R10 (5.0/6.5/8.0MHz)

-Electronic linear array transducer:

LA7.5MHz/L38 (5.0/7.5/10MHz)

Others

Peripheral port: video output 2

USB port 2

DICOM3.0 1 (optional)

Power supply: 100~240VAC 10% 50Hz/60Hz

Dimensions: 286mm(W) X 385mm(L) X 306mm(H)

Net weight: 11Kg

20.553,00 RON cu TVA

      16.575,00 RON fara TVA
