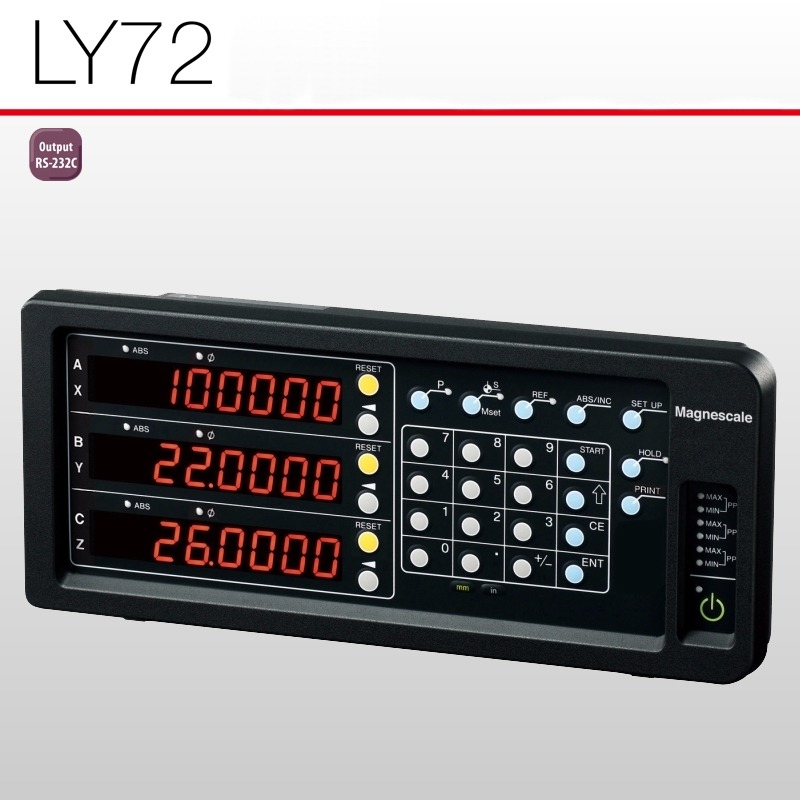

Display digital LY72

Specificaţii
Model LY72

Palpatoare compatibile

Seria DK (necesar cablu conectare CE29), GB-ER, SJ700A, PL20

Numar axe intrare
1, 2 sau 3 axe (prin setare parametri)

Rezolutie intrare
Linear standard: 0.1 / 0.5 / 1 / 5 / 10 μm (Linear extins: 0.05 / 2 / 20 / 25 / 50 / 100 μm), Unghi: 1 s / 10 s / 1 min / 10 min (Unghi extins: 1 grad)

Numa axe afisate
3 axe (A, B si C)
3 axe (X, Y si Z)

Afisare date
When axis label A, B, and C are selected
Current value of each axis Current, max., min., and peak-to-peak values (= max.value – min.value) of each axis.
Current value of each axis

Rezolutie afisaj
Measuring unit input resolution or more. It is possible to provide simple angle display by adhering Digiruler in arc. (There are limitations on displayable resolution depending on radius size.)

Direction
Parameter-based polarity setting for each axis

Alarm display
Measuring unit unconnected, excess speed, display-digit overflow

Addition and subtraction function

Peak hold function
Peak calculation of each axis is possible.
None

Restart
Starts peak hold calculation of each axis/all axes. Operation is made by key operation or general external input.
None

Hold function (latch and pause)Latch = display and output holdingPause = peak calculation holding
Operable using RS-232C command in addition to those at the left
Only latch function is possible. Operation is made by key operation or general external input only(no RS-232C command).

Comparator function
none

Positioning function
None

Input signal
External reset and external print for each axis (4 in total), 1 general input for each axis (3 in total)
External reset of each axis and general input (One of latch, reference point loaded, display switching, and preset recall is selected)
External reset of each axis and general input (One of latch, reference-point load, and pre-set recall is selected)
Input circuit: +12-24 V photocoupler (isolation from internal circuit = power supply Vcc = 12-24 V required)

Output signal
1 for each axis (3 in total)
General output (One of alarm, display data, reference-point passing, and reference-point alarm is selected.)
General output (One of alarm, reference-point passing, and reference-point alarm is selected.)
Output circuit: open collector (photocoupler) 12-24 V, isolated from internal circuit

Comparator judgment output
-

BCD output
-

RS-232C input/output
Each function can be activated using RS-232C command instead of key operation.
Current, max., min., and peak-to-peak values of each axiscan be output using RS-232C data output commands.
Current value of each axis can be outputusing RS-232C data output command.

A/B phase output
-

Expansion unit
-

Reset
Reset can be made by key operation or external reset input.

Preset
Value is settable by key operation or using RS-232C command. A value set by external preset recall can be recalled.

Master calibration function
Provided
None

Datum point/Reference point function
Provided

Key lock function
Provided (presence/absence of setting is set by parameter)

Data storage
Storage/no-storage can be set.

Scaling function
Provided (0.100000 to 9.99999)

Liner compensation
Provided (±600 μm/m)

Power supply
Optional PSC-21/22/23 adapter is used.

Power consumption
32 VA max. (when optional AC adapter is used)

Operating temperature range
0 ~ 40°C

Storage temperature range
−20 ~ 60°C

Greutate
cca. 1.5 kg
